40V Wired EMP Stopper Blocker Protector For Solar Panels MPPT Lightning Surge Protector

(1 customer review)

$139.95

In Stock
Highlights:

This device protects the Solar Panel (12V / 18V / 24V / 32V) side of your inverter / controller against lightning, solar flares, surges as well as EMP charges.

Compare
Ask a Question

Ask a Question

    Description

    *** COMPATIBLE WITH 12V / 18V / 24V / 32V SOLAR PANELS ONLY ***

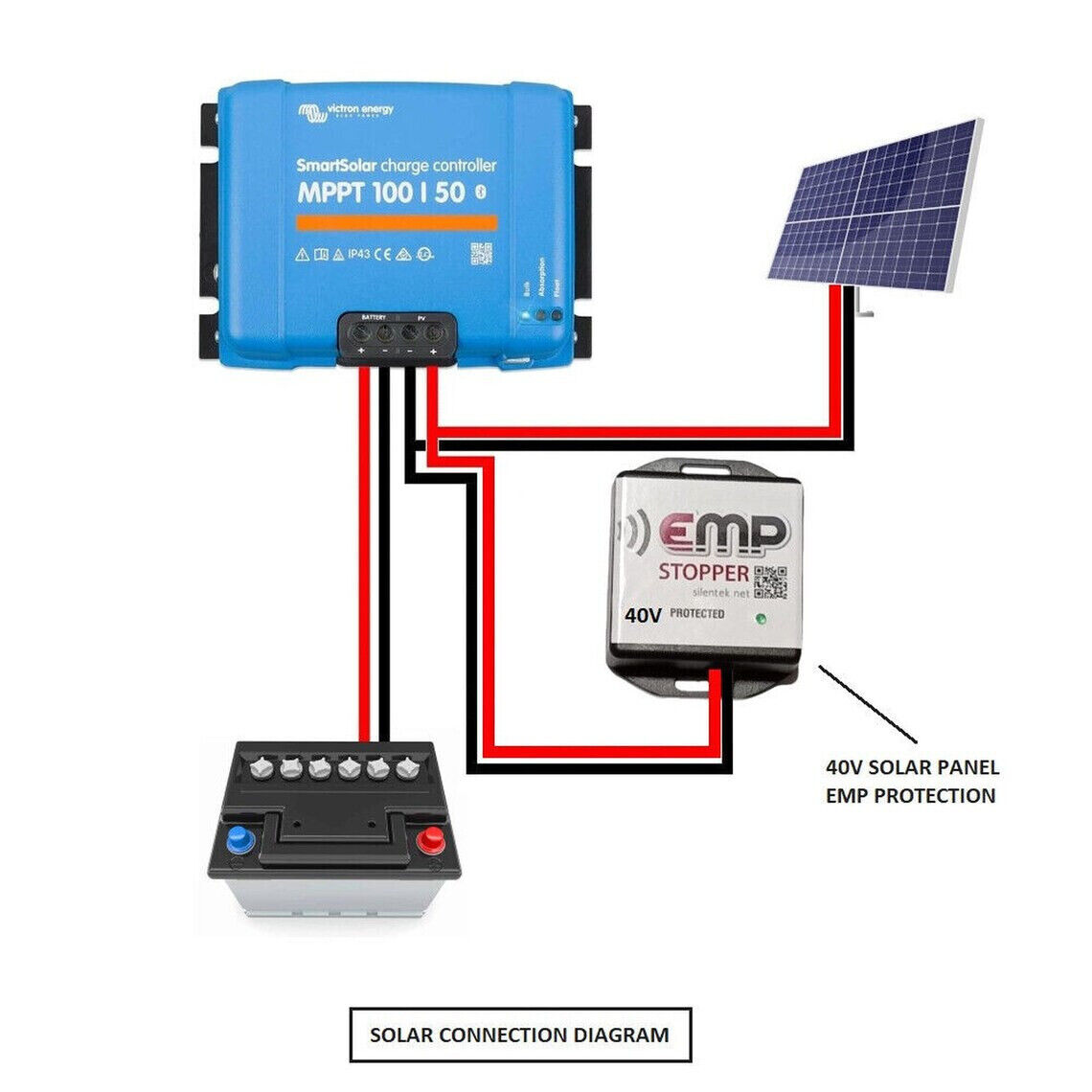

    The EMP Stopper is a multi-purpose transient protection device. It protects your solar panels and the input side of the charge controller / inverter against lightning, solar flares, surges as well as EMP charges. It is easy to install by simply connecting to the terminals of the solar panels at the inverter / charge controller. The device is packed with transient voltage suppression components which have ultra high reliability (AEC Q101 qualified), have a turn-on time of less than 1 picosecond, and can suppress up to 110,000 Amps. This is more than most home electrical panel surge protection devices. Excellent, solid protection for any 12V, 18V, 24V or 32V solar panel array / charge controller / inverter. For complete protection, use together with our 12V EMP stopper to guard against incoming surges via the 12V battery side.



    EMP Stopper Features:

    Weight: Approx. 4 oz.
    Size: Approx. 3.” x 2.5″ x 1″
    Current Draw: Approx. 2mA
    Protection Capacity: 110kA
    Voltage: 12V / 18V / 24V / 32V

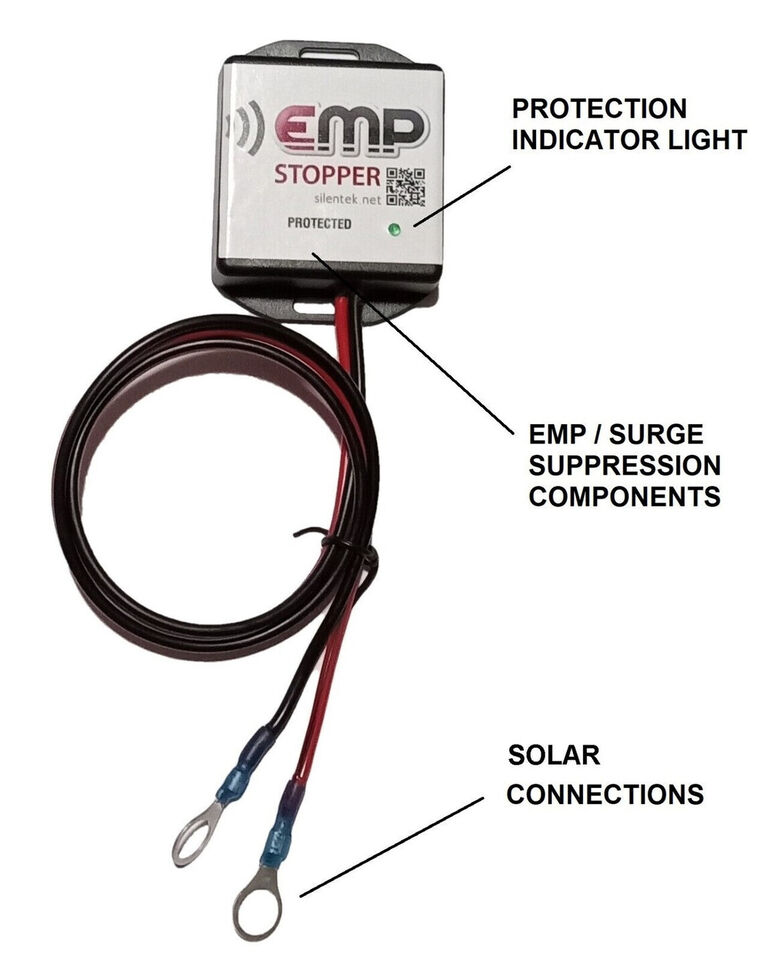

    LED Indicator light
    Protection for Lightning, Surges, EMPs
    Reverse Voltage Protection
    Noise Filtering
    Made in USA, Ships fast from USA



    How can the EMP Stopper be effective against an EMP when it’s so small?

    The danger to solar components from an EMP is mainly the high voltages that are introduced on the wiring from E1 and E2. Those transient voltages are extremely brief in time (from nanoseconds to microseconds) and can therefore be suppressed using small devices. This is distinctly different than the case with homes, which would also experience a powerful E1 current surge from the power grid.



    Is it ok to use multiple EMP Stopper devices?

    Yes, they can be stacked if desired. Using multiple EMP Stoppers will provide a higher surge capacity and do an even better job of absorbing the unwanted energy.



    Does the EMP Stopper protect the input array system even when there is no sunlight?

    Yes, the EMP stopper provides transient protection even when the solar panels receive no light because the solar panel wiring can always receive damaging energy. The EMP Stopper continues to act as a high-frequency energy absorber even when the panels are dark. The module connects to the solar panel input terminals of your charge controller / inverter, ensuring the Stopper always catches any surges across the wiring. The green indicator light uses extremely low current and ensures the module is connected and working.



    Can the light on the EMP Stopper drain my system?

    No, the light uses extremely low levels of power, approx 2mA, which is much less than most accessories. This amount of current draw is negligible.



    Will the EMP stopper work on my solar panels?

    If your solar panel open-circuit voltage is 40V or less, than yes, it is compatible:



    Will the EMP Stopper interfere with any part of my solar system?

    No, the EMP Stopper monitors the wiring for voltage surges and only activates once one is detected. It then shorts this energy in a fraction of a second, protecting the solar system electronics. Once the surge has been neutralized, the module returns to normal, ready for the next surge.

    Additional information
    Color

    Black

    Connection type

    Terminals

    Voltage

    12V, 18V, 24V, 32V, 40V

    Reviews (1)

    1 review for 40V Wired EMP Stopper Blocker Protector For Solar Panels MPPT Lightning Surge Protector

    1. Andrew

      Very Fast shipping. Nice to have piece of mind knowing my panels are protected.
